ISTA Standard 30 KN Vibration Table Testing Equipment For Transportation Simulation

Name: ISTA Standard 30 KN Vibration Table Testing Equipment For Transportation Simulation
Brand: LABTONE
Price: 1 USD

China ISTA Standard 30 KN Vibration Table Testing Equipment For Transportation Simulation wholesale

Brand Name : LABTONE

Model Number : EV430

Certification : CE / ISO

Place of Origin : Dongguang, China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 15 Sets / Month

Delivery Time : 45 Working Days

Packaging Details : Plywood Case with Vacuum Packing

Sine Force Peak : 30 kN (3000 kg.f)

Max Acceleration : 100g

Max Velocity : 2.0 cm/s

Frequency Range : 2-2500 Hz

Max Displacement : 100 mm

Power Supply : 3-phase AC 380V / 50Hz

Max. Payload : 500kg

VIbration Controller : Random, Swept sine, Classical Shock

Contact Now

ISTA Standard 30 KN Vibration Table Testing Equipment For Transportation Simulation

Equipment Configuration

Item	Configuration	Qty.
1.	Vibration shaker COMBO
	A30F44 shaker (including Pneumatic Centering Controller)	1 set
	B752 blower (including silencer and 5M Duct )	1 set
	Head Expander VT100CM	1 set
	Horizontal Slip Table HG100M (including Shaker Rotation System)	1 set
3.	Shaker Controller
	Vcs5X-4 Shaker Controller Hardware: 4ch input/1ch output, Application: Random/Swept Sine/Classic Shock/RSTD	1 set
	Accelerometers (Including Length 7m low noise BNC-M5 cable)	2 set
	PC System(Including computer mainframe, monitor, mouse and keyboard)	1 set
2.	Power Amplifier
	LA30k power amplifier(including Field power supply)	1 set
3	Documentation
	Operation Manual, Test report, Packing List	1 set

Technical Parameters

Shaker Specifications A30F44
Peak Sine (Pk)	3200Kg.f peak (32KN)
Random (RMS)	3200Kg.f r.ms (32KN) @ISO5344
Shock (Pk)	6400Kg.f peak (64KN) @6ms
Usable Frequency	1～3000Hz
Maximum Displacement (p-p)	100mm
Max. velocity	2m/s
Max. acceleration	Sine:85(833 m/s²)；Random: 60G (588 m/s²)
Vertical Load Support	500 kg
Body Suspension Natural Frequency (Thrust Axis)	Less than 2.5 Hz
Armature Diameter	Ф442 mm
Armature Weight	35kg
Fundamental Resonance Frequency (Bare table)	2,500 Hz (nom.) +/- 5%
Load Attachment Points (Standard)	24x M10 inserts
Stray Flux Density	＜10gauss
Allowable partial force	500.N.M
Shaker dimensions	1235mmL×1000mmD×1230mmH
Weight of Shaker	About 2800Kg
Power Amplifier Specifications LA30k
Rated Output Capacity	30KVA
Signal to Noise Ratio	Greater than 65 dB
Amplifier Efficiency	Greater than 90%
Amplifier Overall Dimensions	620mmx960mmx1500mm

Customer Service:

Warranty: 12 months from delivery, lifelong time maintenance.

After-sale service: feedback within 4-8 hours after getting the call or email.

Service: OEM, ODM

Certificate: China official third-party calibration report / CE Certification

Welcome to contact us with your vibration test inquiry.

Application:

ISTA Standard 30 KN Vibration Table Testing Equipment For Transportation Simulation

Product Tags:

vibration test table

vibration lab equipment

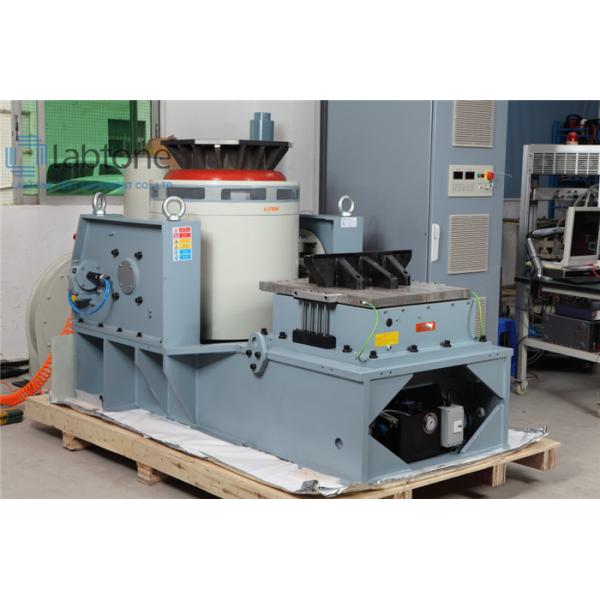

ISTA Standard 30 KN Vibration Table Testing Equipment For Transportation Simulation Images
